Screwdrivers and Bits

Popularity : 37636

Article sharing

Types of Screwdrivers

Can be divided into 7 types according to the end of the screwdrivers.

End		Production Code

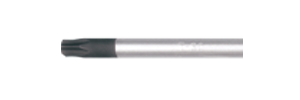

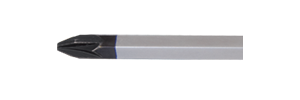

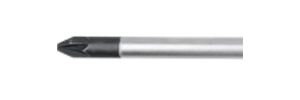

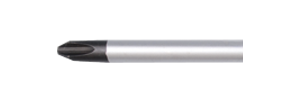

Phillips		1411 1421 1421xx12 1421xx16 14A1 31107MR 1461 1481 14B1

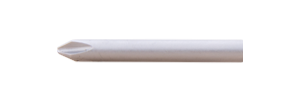

Pozidriv		1428 14A8

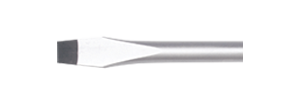

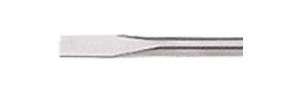

Slotted		1412 1422 1422xx12 1422xx16 14A2 30118MR 1462 1482 14B2

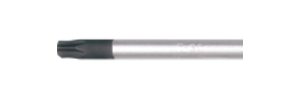

Torx		1423 30315PR 30316PR 30317PR 30319PR
Torx Tamper Proof		1427 30307PR 30309PR

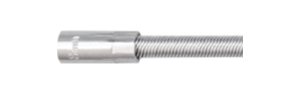

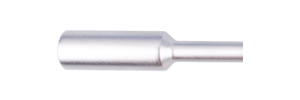

Hexagonal Socket		1450 1453 5450

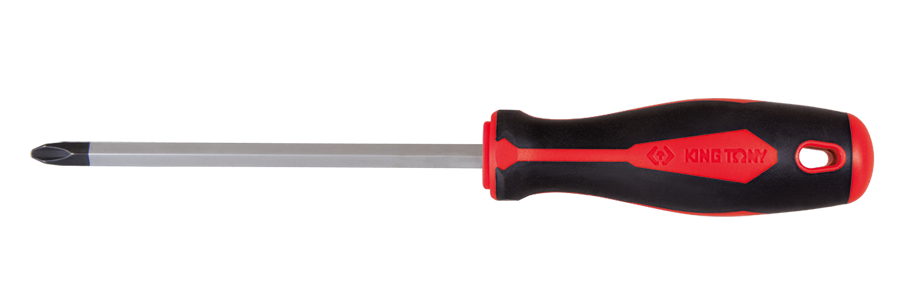

Dual Colored Grip

The grip is made from the composite material, PP and TPR, which not only provide an excellent experience of grabbing, but also can avoid the situation of slipping off from hands.

1421 1421xx12 1421xx16 1422 1422xx12 1422xx16 1423 1424 1427 1428 14A1 14A2 14A8

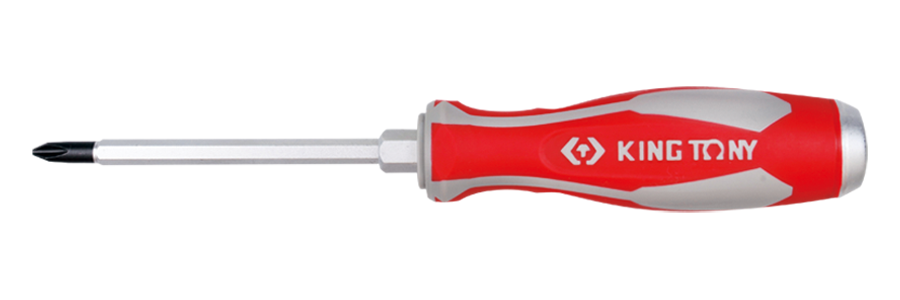

Go Thru Screwdrivers

The end of the handle can be struck by hammers.
Hexagonal guiding head can be used with wrenches to increase the force of rotating.

1461 1462 1481 1482 14B1 14B2 30206AMRB 30206MR 36206MR

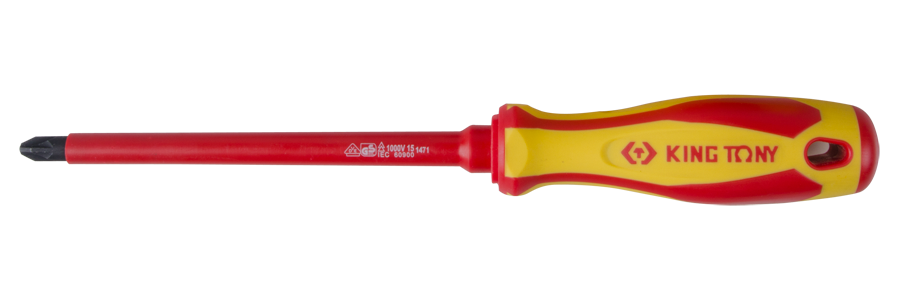

VDE Insulated Screwdrivers

Manufactured and produced according to IEC 60900:2004.
Can be operated at the alternating current area that the voltage is below 1000V, such as distribution boxes, fuse blocks, terminals, relays, and so on.
Please abide by the relevant safety instructions when using electrical insulated tools in order to prevent the accidental circumstances from happening.

1471 1472 1474 1478 147E 30605MR 30606MR 30607MR 30607MR02 30615MR 30617MR

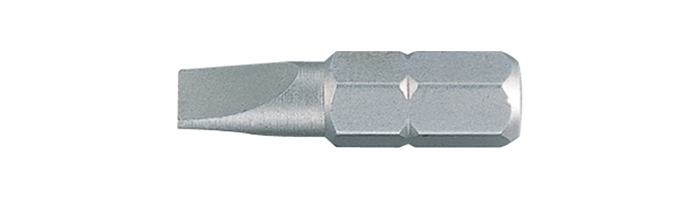

Bits

The specifications can be roughly divided into 1/4”, 5/16” and 10mm.

102512P 1025P 1800P 1003PQ 102502P-S1

Types of Bits

Can be separated into two types according to the power source.

Manually - Bit

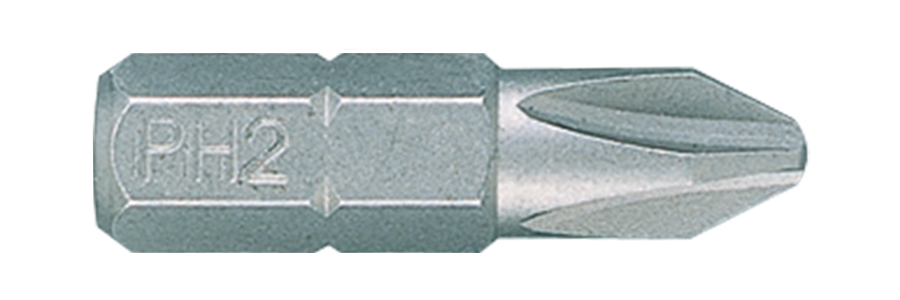

Single Ended Bit

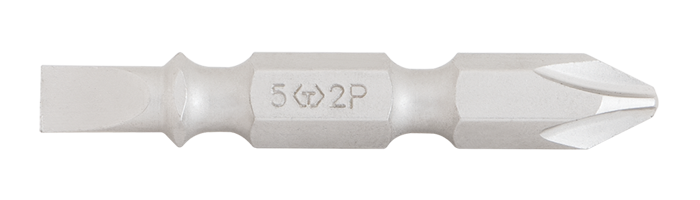

Double Ended Bit

Electircal - Power bit

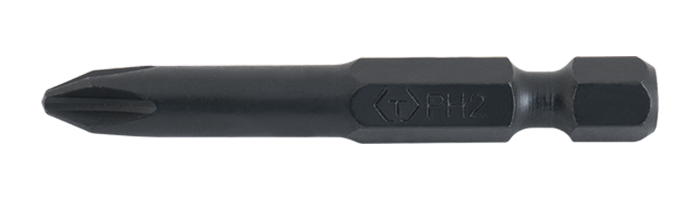

Single Ended Power Bit

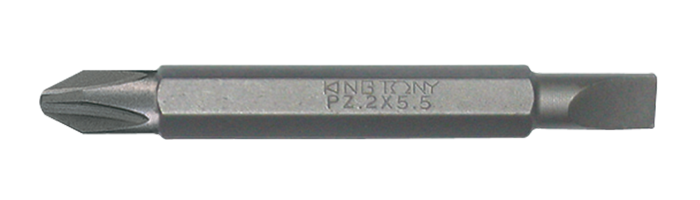

Double Ended Power Bit

Table of All KING TONY´s Single Ended Bits and Power Bits

End
End		Slotted	Phillips	Pozidriv	Torx	Torx Tamper Proof	Hexagon	Five Points Torx Plus Tamper Proof	Square	Twelve Points	Six Points Torx Plus
Bits	1/4"	1025S	1025P	1025Z	1025T	1025U	1025H 5025H	1025V	1025R	1025M
	5/16"	1800S	1800P	1800P	1800T		1800H
	10mm				1600T	1600U	1600H			1600M	1600E
Power Bits	1/4"	7150S	7100P	7100Z	7100T	7100U	7100H 7100SH			7100R

Table of All KING TONY´s Double Ended Bits and Power Bits

End
End		Phillips / Phillips	Phillips / Slotted	Pozidriv / Pozidriv	Pozidriv / Slotted
Bits	1/4"	1360P	1360PS	1360Z	1360ZS
Power Bits	1/4" Long Head	1300P 13A65 13B65 7300P	7300PN
	1/4" Short Head	1500P 7400P
	5mm	7200P
